Integration examples

HIL with radiolink

If users want to do simulations via HIL with the 1x air unit and a PCS, they must setup the 1x air unit to a PC running X-Plane, and have a separate PC with the PCS connected acting as the ground station operating with Veronte Ops.

In this way, users have a PC + 1x air acting as the aircraft, flight controller and environment, and the PC + PCS as the ground station.

Note

This example is described for a PCS as a ground control station, however, this could also be a LCS or an Autopilot 1x used as GND.

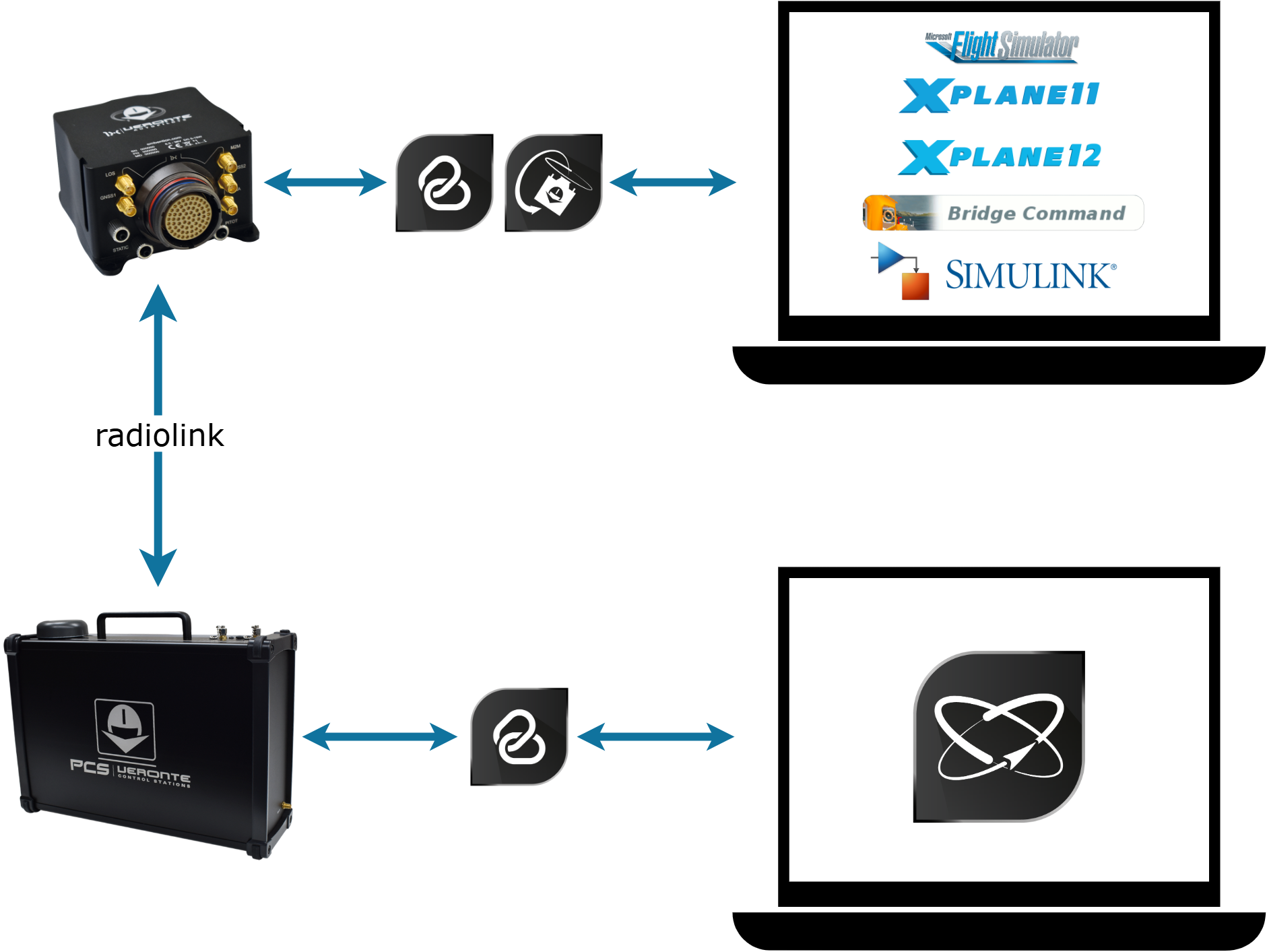

The following diagram summarizes this connection:

Error

The following setup does not ensure a representative simulation of the real scenario, since transfering simulation data over radio may cause undesired behavior due to retarded processing.
